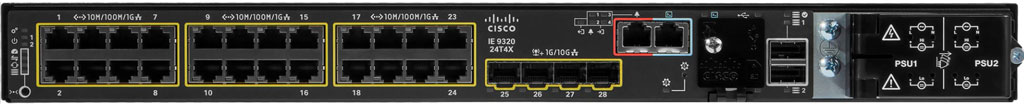

IE-9320-24T4X-E工业交换机
IE-9320-24T4X-E Catalyst IE9300，带 24 端口 GE Cu 下行链路和 4 端口 10G SFP+ 上行链路，可堆叠，NE
IE-9320-24T4X-E工业交换机
RGD-AC-DC-H Hazloc 电源高压交流/直流 85-264VAC/88-300VDC
|
Product number |
Total ports |
Downlinks |
Uplinks (SFP/SFP+) |
Software license |
|
IE-9310-26S2C-E |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 1000M |
Network Essentials |
|
IE-9310-26S2C-A |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 1000M |
Network Advantage |
|
IE-9320-26S2C-E |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 100/1000M |
Network Essentials |
|
IE-9320-26S2C-A |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 100/1000M |
Network Advantage |
|
IE-9320-22S2C4X-E |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 1/10G |
Network Essentials |
|
IE-9320-22S2C4X-A |
28 |
22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
4 ports 1/10G |
Network Advantage |
|
IE-9320-24P4S-E |
28 |
24 ports 10/100/1000M RJ45 PoE+ |
4 ports 1000M |
Network Essentials |
|
IE-9320-24P4S-A |
28 |
24 ports 10/100/1000M RJ45 PoE+ |
4 ports 1000M |
Network Advantage |
|
IE-9320-24T4X-E |
28 |
24 ports 10/100/1000M RJ45 |
4 ports 1/10G |
Network Essentials |
|
IE-9320-24T4X-A |
28 |
24 ports 10/100/1000M RJ45 |
4 ports 1/10G |
Network Advantage |
|
IE-9320-24P4X-E |
28 |
24 ports 10/100/1000M RJ45 PoE+ |
4 ports 1/10G |
Network Essentials |
|
IE-9320-24P4X-A |
28 |
24 ports 10/100/1000M RJ45 PoE+ |
4 ports 1/10G |
Network Advantage |
|
IE-9320-16P8U4X-E |
28 |
16 ports 10/100/1000M PoE+ and 8 ports 100/1000/2500M 4PPoE (up to 90W/port) |
4 ports 1/10G |
Network Essentials |
|
IE-9320-16P8U4X-A |
28 |
16 ports 10/100/1000M PoE+ and 8 ports 100/1000/2500M 4PPoE (up to 90W/port) |
4 ports 1/10G |
Network Advantage |
产品参数
|
Hardware specification |
IE-9310-26S2C -E/-A |
IE-9320-26S2C -E/-A IE-9320-22S2C4X-E/-A IE-9320-24P4S-E/-A IE-9320-24T4X-E/-A IE-9320-24P4X-E/-A IE-9320-16P8U4X-E/-A |
|
Hardware |
4-GB DRAM 8-GB onboard flash memory1 |
4-GB DRAM 8-GB onboard flash memory1 |
|
Removable storage |
USB2,3, SD card2 |
USB2,3, SD card2 |
|
Alarms |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
|
Console ports |
1 RS-232 (via RJ-45), 1 Micro USB |
1 RS-232 (via RJ-45), 1 Micro USB |
|
Power inputs |
Dual AC/DC power inputs |
Dual AC/DC power inputs |
|
Cisco StackWise® ports |
– |
2 stacking ports |
产品尺寸及重量
|
Product number |
Dimensions (H x W x D) |
Weight1 |
Mounting |
Power consumption2 |
|
IE-9310-26S2C-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H |
12.2 lb (5.53 kg) |
Rack mount |
61W |
|
IE-9320-26S2C-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H |
12.2 lb (5.53 kg) |
Rack mount |
64W |
|
IE-9320-22S2C4X-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H |
12.7 lb (5.76 kg) |
Rack mount |
73W |
|
IE-9320-24P4S-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H
● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250
● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400
|
9.7 lb (4.4 kg) |
Rack mount |
37W |
|
IE-9320-24T4X-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H |
9.5 lb (4.3 kg) |
Rack mount |
35W |
|
IE-9320-24P4X-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H
● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250
● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400
|
9.7 lb (4.4 kg) |
Rack mount |
39W |
|
IE-9320-16P8U4X-E/-A |
● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H
● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250
● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400
|
9.9 lb (4.5 kg) |
Rack mount |
45W |
产品性能
|
Feature |
IE-9310-26S2C -E/-A |
IE-9320-26S2C -E/-A IE-9320-24P4S-E/-A |
IE-9320-22S2C4X-E/-A IE-9320-24T4X-E/-A IE-9320-24P4X-E/-A |
IE-9320-16P8U4X-E/-A |
|
Forwarding rate |
28 Gbps (line rate/nonblocking) |
28 Gbps (line rate/nonblocking) |
64 Gbps (line rate/nonblocking) |
76 Gbps (line rate/nonblocking) |
|
Switching bandwidth |
56 Gbps (switching bandwidth is full-duplex capacity) |
56 Gbps (switching bandwidth is full-duplex capacity) |
128 Gbps (switching bandwidth is full-duplex capacity) |
152 Gbps (switching bandwidth is full-duplex capacity) |
|
Number of queues / port |
8 egress |
8 egress |
8 egress |
8 egress |
|
Unicast MAC addresses |
16,000 |
16,000 |
16,000 |
16,000 |
|
Internet Group Management Protocol (IGMP) multicast groups |
1000 |
1000 |
1000 |
1000 |
|
VLANs |
1024 |
1024 |
1024 |
1024 |
|
IPv4 indirect routes |
3044 |
3044 |
3044 |
3044 |
|
IPv6 indirect routes |
1522 |
1522 |
1522 |
1522 |
|
Spanning Tree Protocol (STP) instances |
128 |
128 |
128 |
128 |
|
Access Control List (ACL) entries (port ACL [PACL], VLAN ACL [VACL], router ACL [RACL]) |
1408 |
1408 |
1408 |
1408 |
|
DRAM |
4 GB |
4 GB |
4 GB |
4 GB |
|
Flash (user accessible) |
2.5 GB |
2.5 GB |
2.5 GB |
2.5 GB |
|
SD card capacity1 |
16 GB |
16 GB |
16 GB |
16 GB |
|
SD Access Fabric Edge Support |
Yes (32 VNs) |
Yes (32 VNs) |
Yes (32 VNs) |
Yes (32 VNs) |
|
SGT/DGT policies |
2000 |
2000 |
2000 |
2000 |
|
IPv4 to SGT binding |
10000 |
10000 |
10000 |
10000 |
|
Maximum SVIs |
984 |
984 |
984 |
984 |
|
SXP Sessions |
200 |
200 |
200 |
200 |
|
GRE Tunnels |
10 |
10 |
10 |
10 |
|
Number of Stack Members supported |
- |
4 |
4 |
4 |
软件特性
Key supported software features (Network Essentials license)
|
Network Essentials license (perpetual) |
Features |
|
Layer 2 switching |
802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, 802.3x, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Remote Switched Port Analyzer (RSPAN), Switched Port Analyzer (SPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Layer 2 Protocol Tunneling (L2PT), Q-in-Q, Selective Q-in-Q, EtherChannel, VLAN Mapping, Loop Detection Guard |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping |
|
Management |
WebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, Embedded Event Manager (EEM), Cisco Plug and Play (PnP), Express Setup, Resilient Ethernet Protocol (REP) Zero Touch Provisioning (ZTP) |
|
Security |
DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, Full Flexible NetFlow, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), IEEE 802.1AE MACsec-128, TLS 1.3 |
|
Quality of Service (QoS) |
802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, egress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing |
|
Layer 3 routing |
Static routing, Open Shortest Path First (OSPF – 1000 routes), OSPFv3, Routing Information Protocol (RIP), Policy-Based Routing (PBR) |
|
Industrial Ethernet |
Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP1 (Default Profile, Power Profile 2011, Power Profile 2017), Network Time Protocol (NTP) to PTP, Bidirectional Forwarding Detection (BFD), PTP as refclock for NTP, PROFINET support, Common Industrial Protocol (CIP) Support, Cisco IOx support, Layer 2 Network Address Translation (L2 NAT), ModBus TCP, ERSPAN, Inter-Range Instrumentation Group (IRIG-B) Input and Output interface (B002, B003, B006, B007, B122, B123, B126, B127 timecode)2, Global Navigation Satellite System (GNSS)/Global Positioning System (GPS)2, dying gasp |
|
Redundancy |
REP rings, REP Fast, HSR3, PRP3, MRP, PTP over PRP3 |
|
Automation |
YANG, NETCONF, RESTCONF |
软件区别
Key supported software features (Network Advantage license)
|
Network Advantage license (perpetual)1 |
Features |
|
IP routing protocols |
Hot Standby Router Protocol (HSRP), Border Gateway Protocol (BGP), Enhanced Interior Gateway Routing Protocol (EIGRP), Intermediate System-to-Intermediate System (IS-IS), Nonstop Forwarding (NSF), LISP, OSPF |
|
Virtualization |
VRF-lite |
|
Security |
Cisco TrustSec®: Security group ACL (SGACL), SGACL logging, Extensible Authentication Protocol – Transport Layer Security (EAP-TLS), IEEE 802.1AE MACsec-256, SD-Access Policy Extended Node, SD-Access Fabric Edge Node, Generic Routing Encapsulation (GRE) |
|
IP Multicast |
Auto-RP, Multicast Source Discovery Protocol (MSDP), Protocol Independent Multicast (PIM) v2, IPv6 Multicast with VRF-lite support |
|
Industrial Ethernet |
Layer 3 Network Address Translation (L3 NAT) |
|
Network Features |
Audio Video Bridging (AVB, IEEE 802.1BA) |
