PWR-IE50W-AC-L工业电源

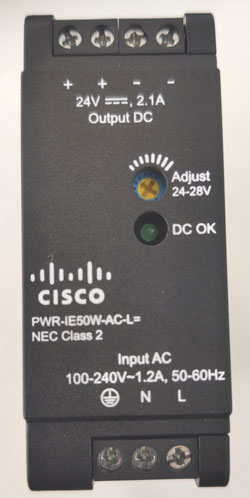

PWR-IE50W-AC-L 产品图


---

输入参数：

PWR-IE50W-AC-L=

输入参数：

AC 100-240V/1.2A,

50-60Hz

AC 90-264V 88% < 35A @

115VAC and

70A @ 230VAC

Not approved for

hazardous location

installations


输出参数：

24VDC / 24-28VDC, 2.1A 50W 20ms

防水与工作参数：

IP20 -20°C to +70°C -40°C to +85°C > 55°C de-rate power

by 3.33%/°C

< -10°C de-rate power

by 2%/°C

5 to 95% RH

(non-condensing)


产品认证：

CE (EMC Directive 2004/108/EC and Low

Voltage Directive 2006/95/EC)

UL/cUL recognized to UL 60950-1 and CSA

C22.2 No. 60950-1

UL/cUL recognized to UL 62368-1 and CSA

C22.2 No. 62368-1

UL/cUL listed to UL 508 and CSA C22.2 No.

107.1-01

CB scheme to IEC 60950-1, LPS

NEC Class 2


工业标准：

EN 61000-3-2 Class A, EN 61000-3-3

EN 61000-6-1, EN 61000-6-2, EN 61000-6-3,

EN 61000-6-4,

EN 61204-3, EN 55024 (EN 61000-4-

2,3,4,5,6,8,11 LEVEL 3, Performance Criteria

A)

CISPR 22, EN 55022, CISPR 11, EN 55011,

FCC part 15B


尺寸重量与无故障时间


30 mm x 75 mm x 89.5 mm

1.18 in x 2.95 in x 3.52 in

0.39 lb (0.18 kg) 2,255,613 hours
